ASME B18.3 Socket Head Cap Screw Manufacturer | Hex Socket Flat Head Bolt

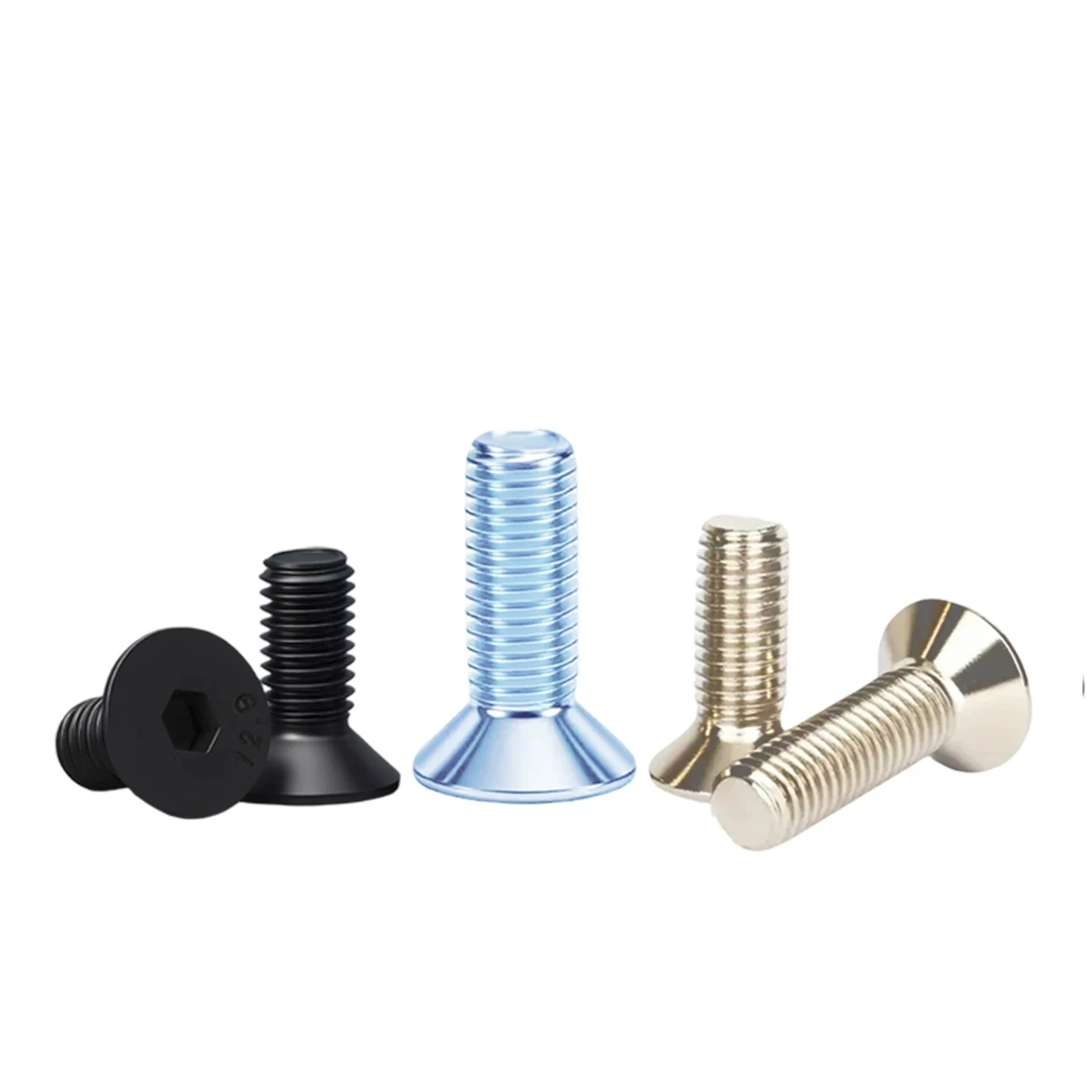

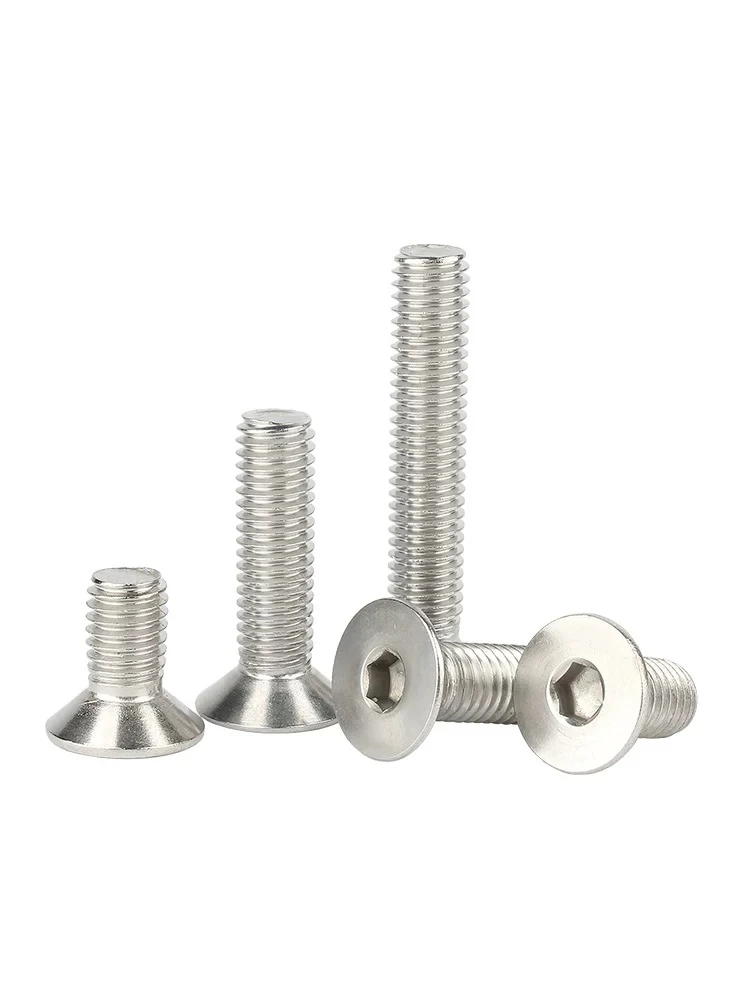

LONGZE ASME B18.3 Socket Head Flat Countersunk Cap Screws are the definitive inch-series solution for high-strength, flush-surface fastening. Designed according to North American industrial standards, these fasteners feature a 82-degree countersunk head (distinct from metric 90-degree standards) to ensure perfect integration with imperial-spec machinery. As a core inch-node in the LONGZE GFM-WCR System, our ASME B18.3 series is forged from high-grade alloy steel, delivering superior fatigue resistance and tensile strength for oil & gas, aerospace, and heavy industrial applications.
Precision-matched factory pairing for ASME-standard imperial assemblies:
- 🔹 Primary Match: ASME B18.2.2 Hex Nuts (UNC/UNF)
- 🔹 Locking Alternative: ASME B18.16.6 Nylon Insert Lock Nuts
- 🔹 Washer Solution: ASME B18.21.1 Helical Spring Lock Washers
LONGZE GLOBAL FASTENERS STANDARDS SYSTEM
Engineering Standard Mapping Layer (ASME Imperial Socket Node)
ASME B18.3 ➔ ASTM A574 (Alloy) ➔ SAE J429
UNC (Coarse) ➔ UNF (Fine) ➔ Class 3A Fit
LONGZE Technical Specification & Performance Lab
Engineering Reliability Center: Advanced imperial thread rolling and 82° head geometry verification.
1. Technical HUB
| Diameter | #0 – 1-1/2" |
| Grade | High-Strength Alloy Steel |
| Head Angle | 82° Countersunk |
| Thread Class | UNRC / UNRF 3A |
| Hardness | HRC 39 - 45 |
2. Surface Lab
| Thermal Black | Standard Oil Finish |
| Zinc Plating | ASTM B633 Compliant |
| Cadmium | Special Aviation Request |
| Phosphate | Heavy Manganese/Zinc |
| Custom | Xylan / Teflon Coated |
3. QC Lab
| Gaging Audit | System 22/21 Thread Fit |
| MPI Testing | Magnetic Particle Inspect |
| Axial Tensile | Full Load Performance |
| Microstructure | Grain Flow Verification |
| Yield Stress | Certified MTR Data |
📊 ASME B18.3 Dimensional Matrix (Inch Series)
Engineering Data: Comparison of Head Diameter (A) and Hex Socket Size (J). All values in Inches.
📥 DOWNLOAD ASME B18.3 TECHNICAL MASTER SHEET
🛡️ LONGZE STRATEGIC RISK MANAGEMENT & RESILIENCE
Global ASME compliance for high-risk infrastructure and heavy tooling.
- 82° Precision: Accurate head angle control prevents edge-loading and countersunk fracture.
- Thread Overlap: UNRC/UNRF thread rolling post-heat treat to increase fatigue life by 30%.
- Socket Concentricity: Zero-offset drive alignment for consistent high-torque installation.
- Embrittlement Control: Standardized baking protocols for all electro-plated alloy fasteners.
- Inch Stock Mastery: Full range of UNC and UNF threads available for North American projects.
- Material Traceability: Digital archiving of ASTM A574 chemical and mechanical test reports.
- Rapid Customization: Ability to manufacture non-standard lengths and oversized heads per blueprint.
- Logistics Intelligence: Automated volume optimization for heavy-freight sea shipments to USA/Canada.
V-SYSTEM Interconnectivity Matrix
Synchronizing imperial socket excellence with global trade dynamics. SYSTEM STATUS: GFM-WCR ACTIVE
