Understanding the Types of Flange Nuts

Flange nuts are a specialized type of fastener often used in various mechanical applications. They are distinguished from standard nuts by their integrated flange, which serves a critical role in distributing the load across a wider area and improving the overall performance of the assembly. Here, we will explore the different types of flange nuts, their features, and their applications.

What is a Flange Nut?

A flange nut is a nut that has a wide, circular base or flange at one end. This flange helps to increase the bearing surface of the nut, thereby distributing the load more evenly on the material being fastened. This feature minimizes the likelihood of damage to the surface beneath it and reduces the chance of the nut loosening over time due to vibration or other forces.

Types of Flange Nuts

1. Flange Lock Nuts These nuts combine the benefits of the flange with a locking mechanism. The interior of a flange lock nut typically features a nylon insert or serrated edges that grip the bolt threads tightly. This design prevents the nut from loosening under dynamic loads, making it ideal for applications exposed to vibrations, such as automotive and machinery assemblies.

2. Serrated Flange Nuts Serrated flange nuts have teeth or serrations on the underside of the flange. These serrations dig into the surface of the material being fastened, providing additional friction and resistance against loosening. They are commonly used in applications where high vibration is present and the assembly needs to maintain a strong hold.

3. Regular Flange Nuts These are standard flange nuts without any locking mechanism or serrations. They are suitable for applications where load distribution is a priority, but there are no excessive forces that might cause loosening. Regular flange nuts can be found in structural applications, such as building frameworks and equipment assemblies.

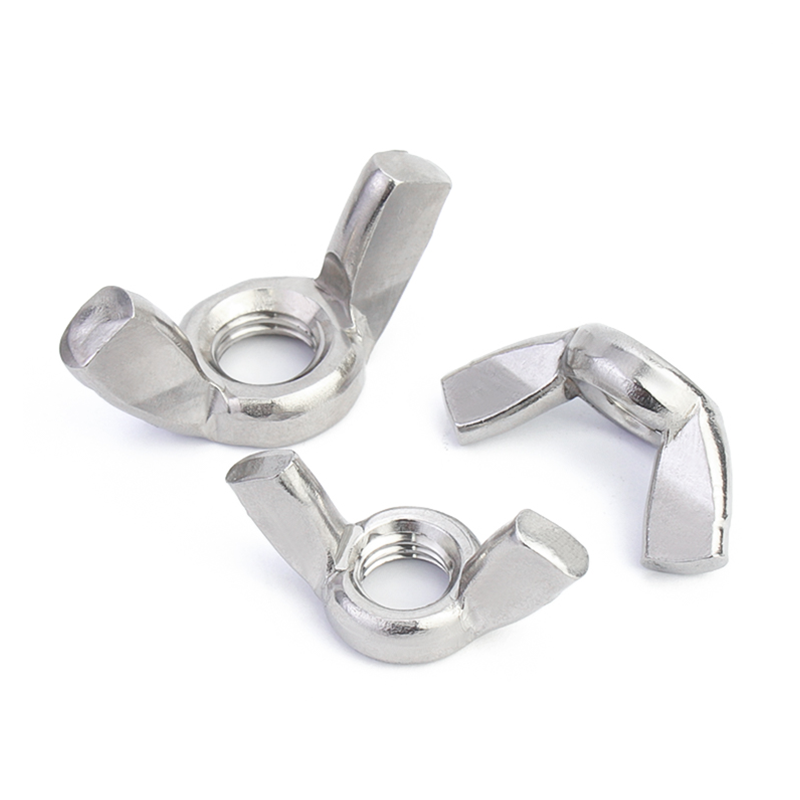

4. Wing Flange Nuts Wing flange nuts feature two “wings” on the sides, allowing for easy manual tightening and loosening. They are often used in applications where frequent adjustments are needed, such as in electrical connecting points or in assemblies requiring quick disassembly. The flange provides additional support, ensuring stability during use.

5. Hex Flange Nuts Similar to regular hex nuts but with an integrated flange, hex flange nuts are versatile and used across various industries. Their design combines the traditional hexagonal shape for standard tooling with the advantages of a flange. They are ideal for most applications requiring a strong and reliable fastening solution.

Applications of Flange Nuts

Flange nuts are commonly found across a range of industries, including automotive, aerospace, manufacturing, and construction. Their ability to distribute loads and minimize loosening makes them ideal for high-stress scenarios.

- Automotive Industry In vehicles, flange nuts are used to secure components such as wheels, suspension systems, and engine mounts, where vibration resistance is crucial. - Aerospace In aircraft manufacturing, the reliability and strength of flange nuts are vital for ensuring safety and performance at high altitudes and varying pressures. - Construction Flange nuts play an essential role in building structures, providing the strength needed to support heavy loads while ensuring that assemblies remain stable over time.

Conclusion

In conclusion, flange nuts are an essential component in various mechanical applications, providing distinct advantages over traditional nuts thanks to their integrated flanges. Understanding the different types of flange nuts and their specific applications is critical for any engineer or craftsman involved in assembly work. By choosing the right flange nut, one can ensure that projects meet their safety, efficiency, and performance objectives. Whether for automotive, aerospace, or construction, flange nuts offer a reliable and effective fastener solution.
