DIN 6334 Hexagon Coupling Nuts (Long Extension Nuts) Manufacturer

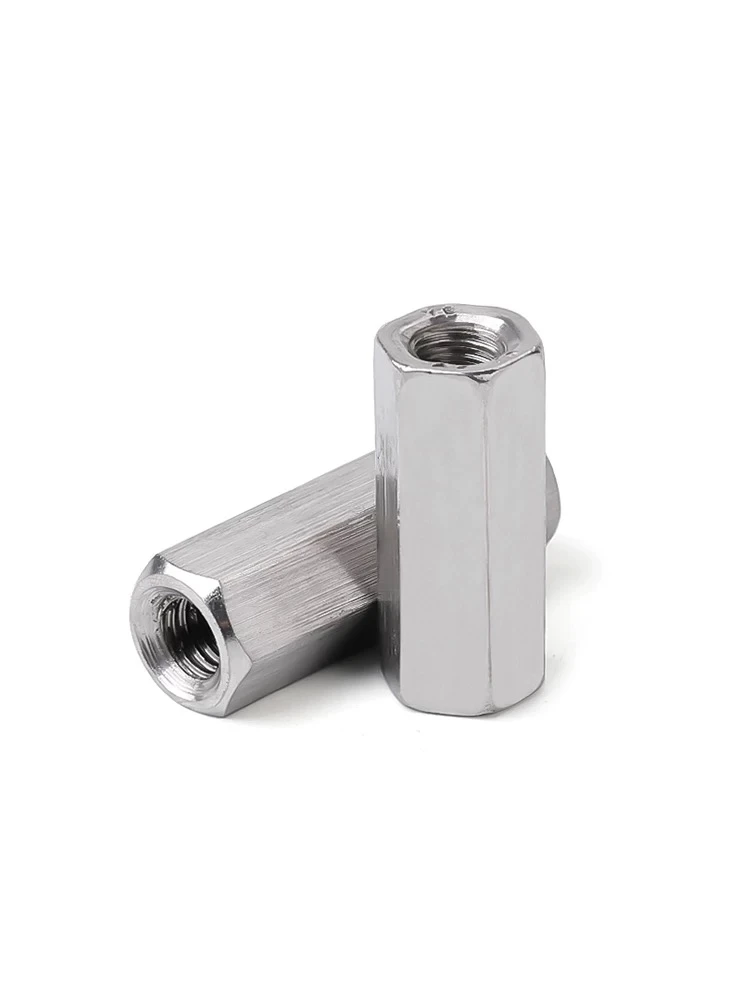

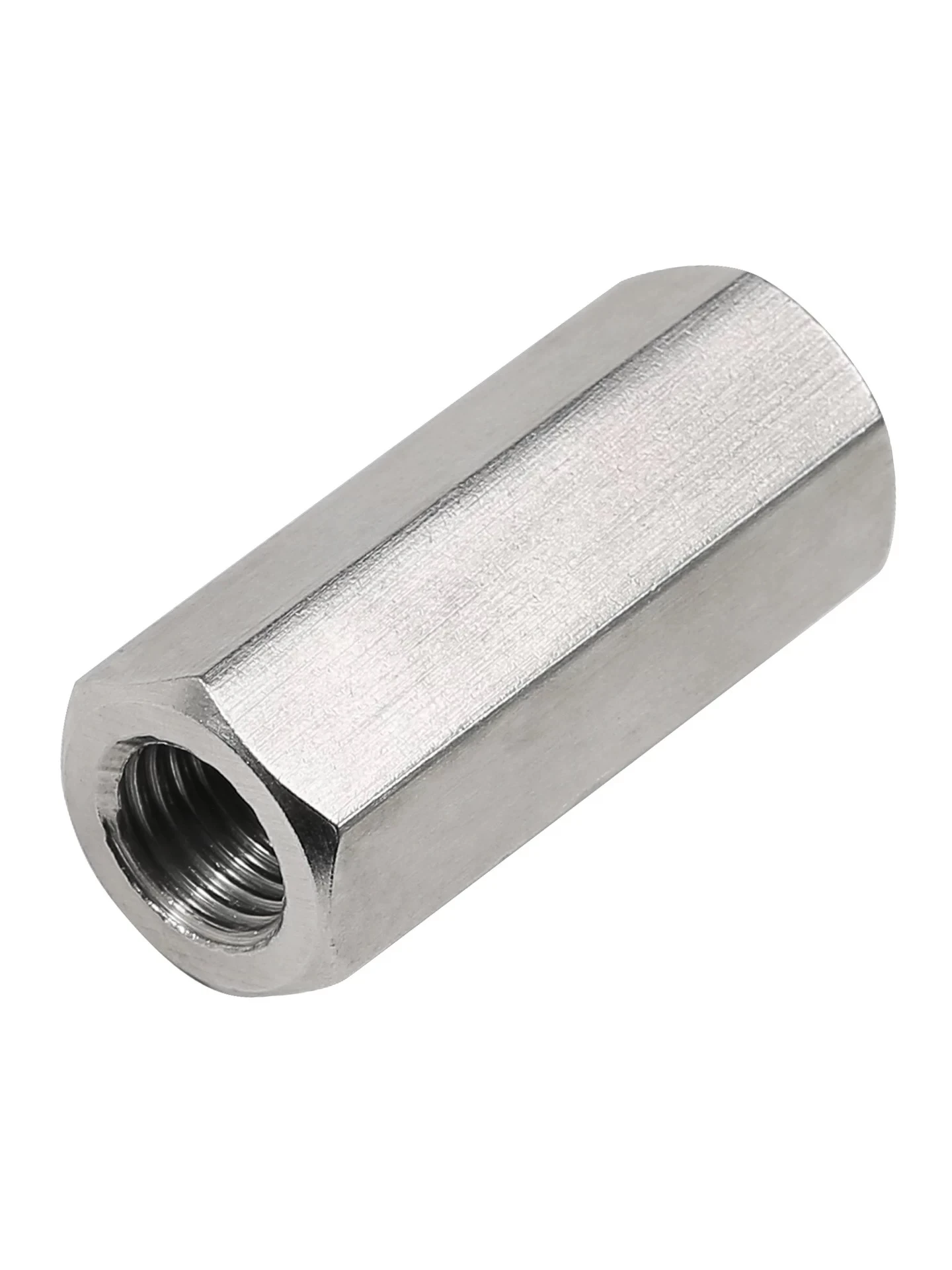

LONGZE DIN 6334 Hexagon Coupling Nuts, also known as Long Extension Nuts, are engineered to provide deep thread engagement for connecting two male threads, typically threaded rods. As a specialized high-tensile node in the LONGZE GFM-WCR System, these nuts feature a height precisely 3 times the nominal thread diameter ($3 \times d$). Manufactured from high-grade carbon steel or stainless steel, our DIN 6334 series ensures structural alignment and superior load transfer in suspension systems, machinery mounting, and construction applications.
Optimal factory-direct assembly for extended thread connections:
- 🔹 Primary Match: DIN 975 / DIN 976 Threaded Rods
- 🔹 Standard Nut Support: ISO 4032 / DIN 934
- 🔹 Washer Support: DIN 125 / ISO 7089
LONGZE GLOBAL FASTENERS STANDARDS SYSTEM
Engineering Standard Mapping Layer (Coupling & Extension Nuts)
LONGZE Technical Specification & Performance Lab
Engineering Reliability Center: Comprehensive validation of thread concentricity and proof load to prevent structural rod failure at connection points.
1. Technical HUB
| Range | M6 – M36 |
| Grades | Class 6, 8, 10 |
| Height Logic | 3 x Diameter (Standard) |
| Materials | CS / SS304 / SS316 |
| Thread | Metric Coarse (6H) |
2. Surface Lab
| Zinc Plated | Clear / Yellow (Cr3+) |
| Hot Dip Zinc | Oversize for Rods |
| Black Coating | Oxide / Zinc Black |
| Stainless | Passivated Finish |
| Anti-Seize | Moly / PTFE Coating |
3. QC Lab
| Alignment | Concentricity Check |
| Full Tapping | Go-Gauge Through Test |
| Hardness | HRC / HV Monitoring |
| Salt Spray | Up to 500H (Optional) |
| Traceability | Batch Code Integration |
📊 DIN 6334 Dimensional Matrix (3d Extension)
Dimensional Compliance Matrix: Standard parameters for DIN 6334 hexagon coupling nuts. Custom lengths ($L$) are available upon request for specific engineering assemblies. All values in mm.
📥 DOWNLOAD DIN 6334 COUPLING NUT DATA SHEET
🛡️ LONGZE STRATEGIC RISK MANAGEMENT & RESILIENCE
Advanced mitigation protocols focused on maintaining connection integrity in long-span threaded assemblies.
- Thread Jamming: Precision tapping prevents internal burrs that cause rods to seize mid-way.
- Angular Misalignment: Controlled hex-to-bore perpendicularity ensures rods stay straight.
- Seizing Prevention: Specific coating options for stainless steel coupling to prevent galling.
- Load Failure: Material proof load testing exceeds the tensile strength of the matched threaded rod.
- Cold Forming: High-velocity cold heading for M6-M20 sizes ensures grain flow and strength.
- Machining Center: CNC drilling and tapping for M24+ and custom lengths (L=50, 100, etc.).
- Inventory: Strategic stock of galvanized and stainless coupling nuts for immediate logistics.
- Transparency: Full material heat traceability integrated into the GFM-WCR database.
Bespoke Coupling Solutions & Drawing Support
Requiring custom lengths, fine threads, or specialized materials (e.g., A4-80) for marine environments? Our technical department offers CAD support and rapid prototyping.
* Technical proposals subject to GFM-WCR engineering validation.
Quality Assurance & Global Logistics Risk Control
Ensuring technical compliance from the factory floor in Handan to your project site in Istanbul or Kuala Lumpur.
Q: What if the coupling nut concentricity causes rod bending?
A: Reliability is our red line. We verify thread axis alignment using custom-built concentricity gauges. Any batch failing structural alignment is 100% rejected and replaced. We guarantee straight connections.
Q: How do you protect long-form nuts from thread damage during sea freight?
A: All DIN 6334 nuts are packed in moisture-resistant reinforced drums or cartons, palletized with high-tension shrink wrap and corner protectors. Full DDP duty calculations are provided for hassle-free customs clearance.
V-SYSTEM Interconnectivity Matrix
The V-SYSTEM links technical coupling parameters with logistics speed and procurement safety. SYSTEM STATUS: GFM-WCR ACTIVE
Direct Factory Connection & GFM-WCR Support
Direct access to the manufacturing floor for engineering-grade coupling components. Contact Sales Director Eric for immediate RFQ processing.
