ASME B18.2.2 Hex Flange Nuts (Serrated & Smooth) Manufacturer

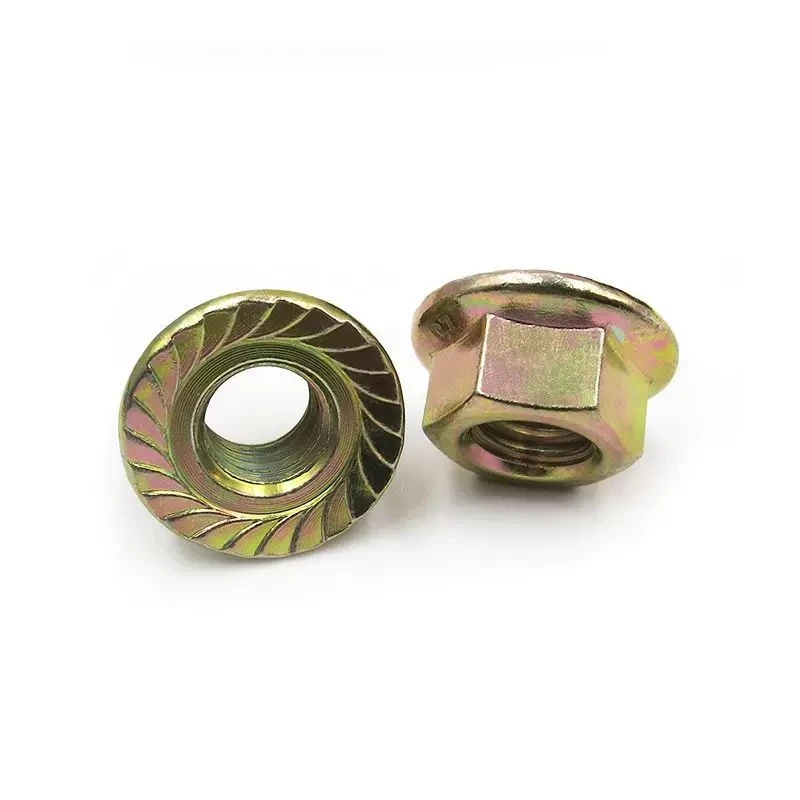

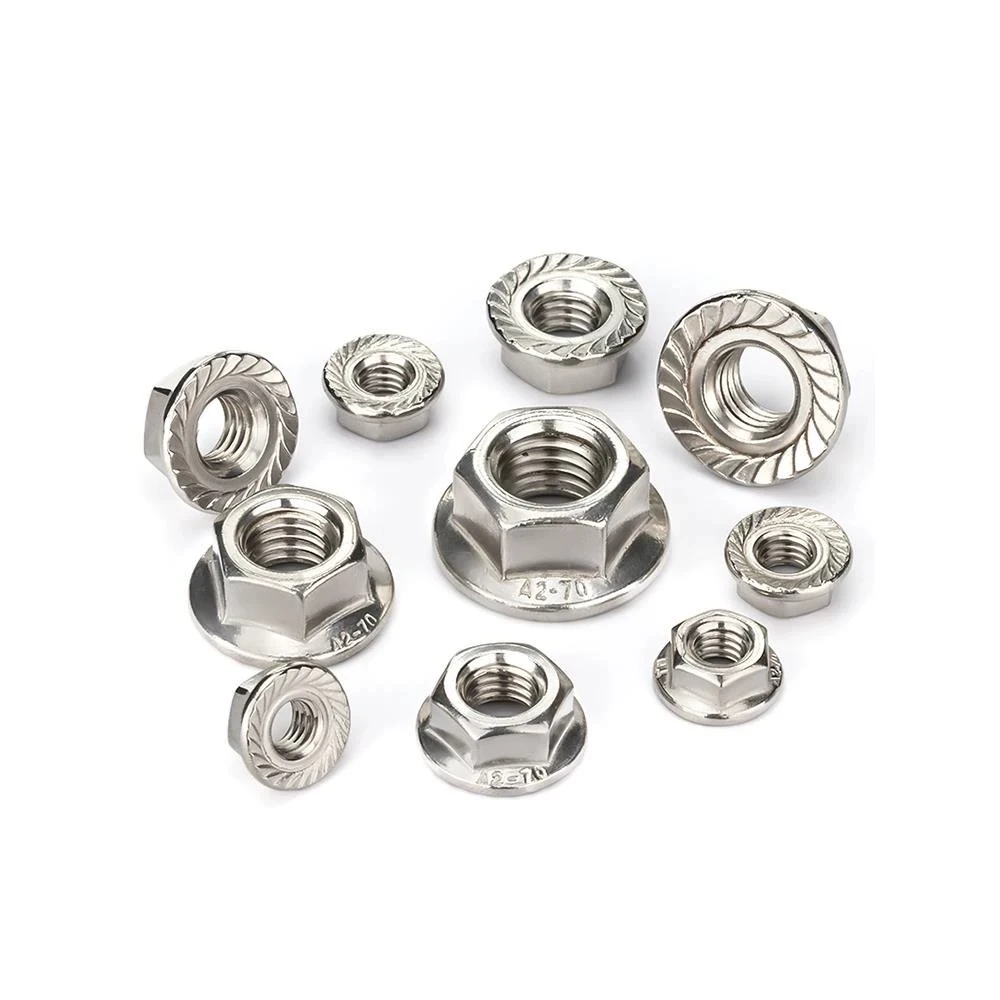

LONGZE ASME B18.2.2 Hex Flange Nuts are engineered to provide a high-strength fastening solution that eliminates the need for separate washers by integrating a wide load-bearing base. As a foundational torque-distribution node in the LONGZE GFM-WCR System, these nuts are available in both Smooth Flange (for uniform pressure) and Serrated Flange (for enhanced vibration resistance and grounding). Precision-forged for the North American inch-series market, our flange nuts ensure superior joint integrity in automotive frames, solar racking, and heavy industrial machinery.
Optimal factory-direct assembly for high-load flange joints:
- 🔹 Primary Match: ASME B18.2.1 Hex Bolts / Flange Bolts
- 🔹 Locking Upgrade: ASME B18.16.6 (Nylon Flange)
- 🔹 Metric Counterpart: DIN 6923 (ISO 4161)
LONGZE GLOBAL FASTENERS STANDARDS SYSTEM
Engineering Standard Mapping Layer (Inch Flange Nut Series)
LONGZE Technical Specification & Performance Lab
Engineering Reliability Center: Mechanical property validation and serration depth analysis to optimize clamp load and surface friction.
1. Technical HUB
| Range | 1/4" to 3/4" (Inch) |
| Grades | Grade 2, 5, 8 |
| Thread | UNC / UNF (Class 2B) |
| Materials | Carbon Steel / Alloy / SS |
| Interface | Smooth / Serrated |
2. Surface Lab
| Zinc Plated | Clear / Yellow / Black |
| Phosphate | Black (Lubricated) |
| Magni/Geomet | High-Corrosion Zinc Flake |
| Hot Dip Zinc | Oversized Tap Available |
| Passivated | For Stainless Steel |
3. QC Lab
| Proof Load | ASTM A563 Verification |
| Serration Hard | Bite-Force Analysis |
| Thread Go/No | 6H/2B Consistency |
| Salt Spray | Red Rust Cycle Test |
| Hardness | Rockwell C (Grade 8) |
📊 ASME B18.2.2 Hex Flange Nut Dimensions (Inch)
Dimensional Compliance Matrix: Standard parameters for ASME B18.2.2 Hex Flange Nuts. All values in inches.
📥 DOWNLOAD ASME B18.2.2 HEX FLANGE NUT DATA SHEET
🛡️ LONGZE STRATEGIC RISK MANAGEMENT & RESILIENCE
Advanced risk mitigation for high-vibration and structural flange applications.
- Vibration Loosening: Serrated options provide "locking" teeth to dig into mating surfaces.
- Surface Scuffing: Smooth flange options protect delicate or coated mating materials.
- Torque Accuracy: Friction-coefficient control on zinc-flake coatings prevents over-tightening.
- Hydrogen Embrittlement: Strict baking protocols for Grade 8 high-tensile plated nuts.
- Standard Compliance: Cross-verification between ASME B18.2.2 and IFI-145 benchmarks.
- Material Integrity: Spectrometer analysis on every raw wire coil before cold-heading.
- Logistics: Efficient DDP/CIF handling for North American and European industrial hubs.
- SOP Management: Data anchoring in the GFM-WCR repository ensures batch-to-batch consistency.
Bespoke Flange Nut Engineering & GFM Support
Need an oversized flange, custom serration patterns, or specialized Grade 8 alloy materials? Our technical unit provides rapid prototyping and drawing verification through the GFM framework.
* Technical consultation provided by Longze Technical Department.
Quality Assurance & Global Logistics Risk Control
Bridging the gap between North American structural standards and global manufacturing precision.
Q: How do you ensure serration depth is consistent for electrical grounding?
A: Reliability is our red line. We use laser-profiling on serration teeth during sample audits to ensure they "bite" through surface coatings as required. Inconsistent serrations are 100% rejected.
Q: How do you manage large-volume weight constraints for air-freight to Turkey?
A: We provide detailed volume/weight calculations (TDS-VOL) for every shipment. For air-freight, we optimize pallet sizes and use high-density cardboard to maximize space while ensuring total protection.
V-SYSTEM Interconnectivity Matrix
The V-SYSTEM links North American inch-series fasteners with global supply chain safety. SYSTEM STATUS: GFM-WCR ACTIVE
Direct Factory Connection & GFM-WCR Support
Bridge the gap between North American engineering and Chinese manufacturing. Contact Eric for immediate RFQ and DDP planning.
